Pundit Ultrasonic
PD8000
Structural imaging, object and defect detection using ultrasound pulse echo
- Image clarity in the near field and at superior depths
- Complete on-site structural assessment with A
Delivery Partners:
Pundit Ultrasonic
PD8000
Structural imaging, object and defect detection using ultrasound pulse echo
- Image clarity in the near field and at superior depths
- Complete on-site structural assessment with A.I. support and various visualization modes (including AR)
- Unbeatable on-site productivity thanks to superior ergonomics and digital workflows
Applications:

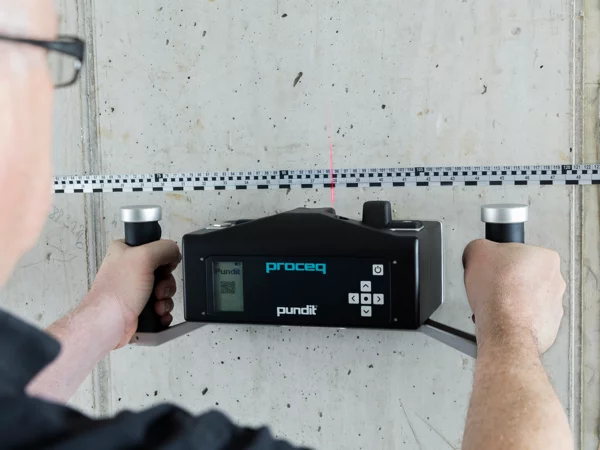

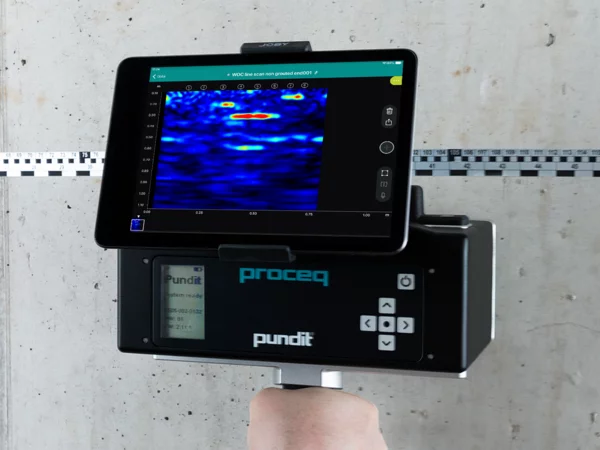

Location of subsurface defects of concrete / Measurement of thickness of concrete elements / Determination of concrete pulse velocity for homogeneity and strength estimation

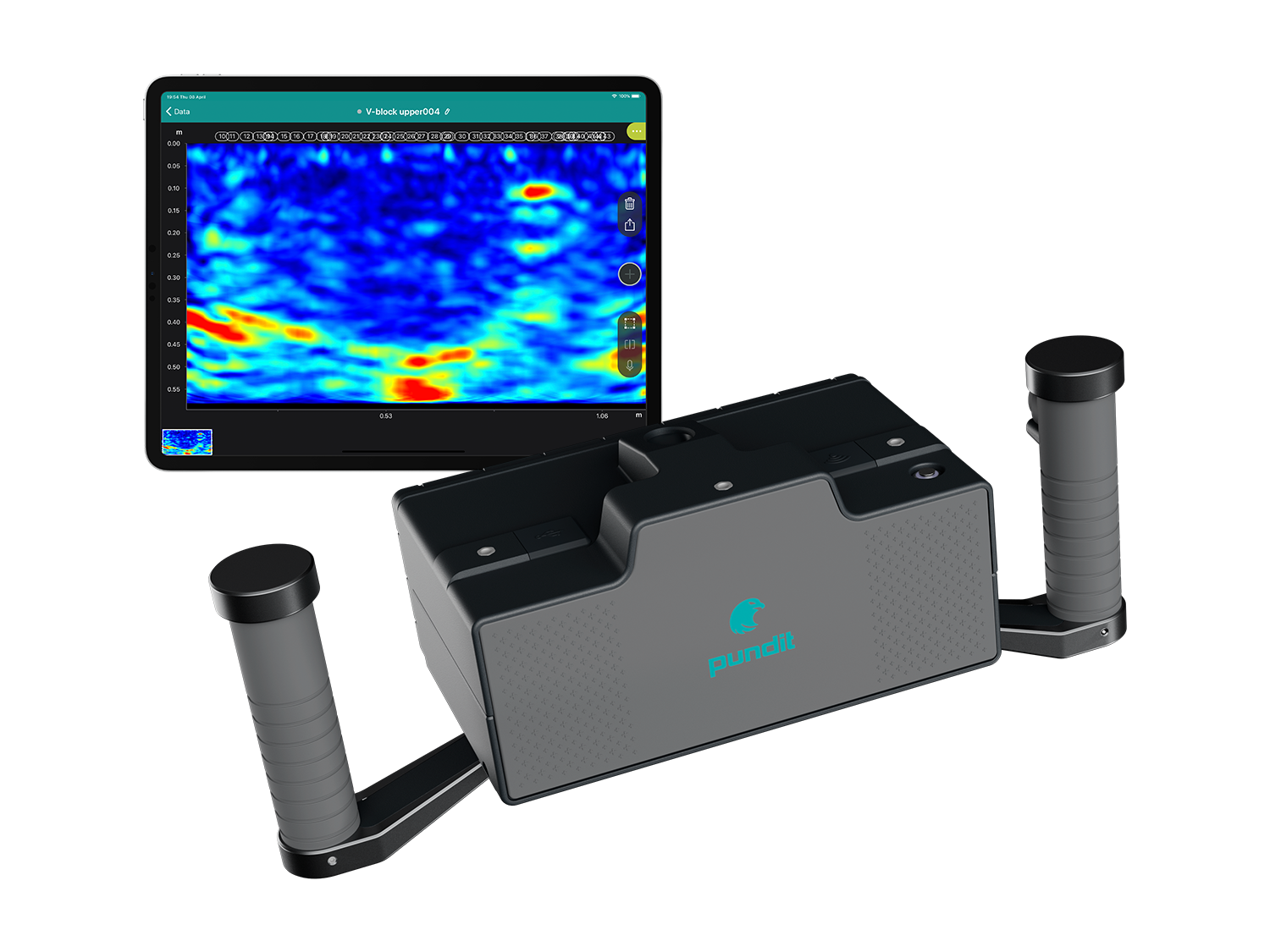

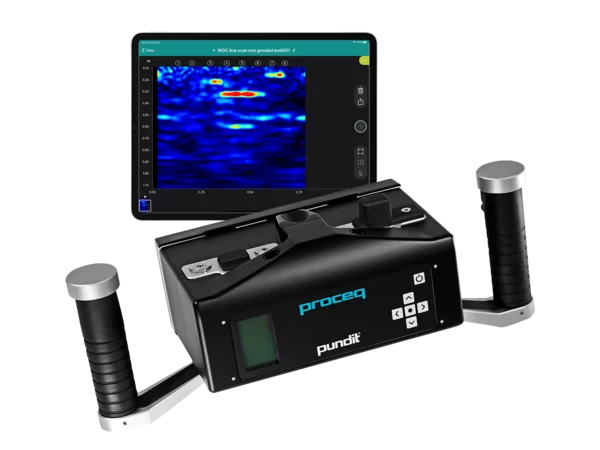

Wireless Ultrasonic Imaging with Augmented Reality and Intelligent Features
Performance
Wireless inspection solution with on-site, high-resolution 3D imaging using pulse echo technology and efficient cloud storage for your data.
Future readiness
Extendable probe powered by ever-evolving software, smartly complements your Proceq GPR to expand your inspection capabilities.
Productivity
Ultimate peace of mind delivered by A.I.-assisted positioning and data interpretation. Gain insights fast with immediate data visualization and easy report creation.
| Software / Workspace App | |
| Display Unit | Any compatible Apple iPad (iOS 11.0 and higher)1 |
| Workspace Integration | App synchronization Share via URL Automatic logbook Raw data export HTML export Instant report generation |
| Special Features | High definition focus view Macro view-variable frequency and voltage Wide panoramic B-scan Augmented Reality 3D view AI-assisted positioning AI-assisted feature interpretation Image stabilizer |
| Display Unit Specs2: | Screen size: From 7.9" to 12.9" Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID |
| Display Unit Sensors3: | LiDAR Scanner (optional) Three-axis gyro Accelerometer Ambient light sensor Barometer Built-in GPS/GNSS |
| Sensor | |
| Bandwidth | 20-80 kHz |
| Technology | Multi-channel Ultrasonic Pulse Echo |
| Measuring Resolution | 0.1 us |
| Pulse Voltage | ±50 to ±150 V (UPE) |
| Receiver Gain | 1 to 10'000 (0 to 80 dB) |
| Nominal Transducer Frequency | 40 kHz |
| Pulse Shape | Square Wave |
| Pulse Delay | 8 ms-200 ms |

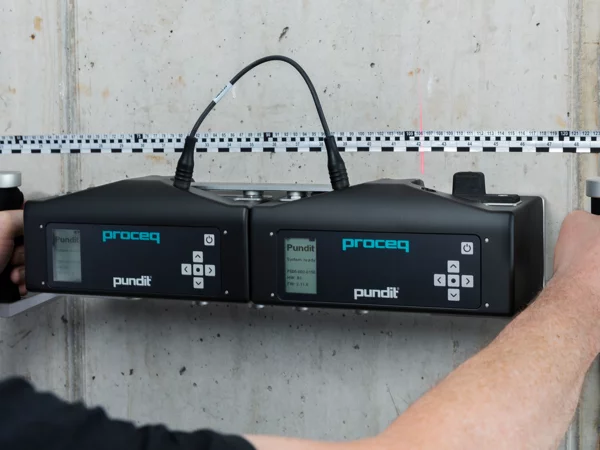

| Number of Channels | 8 (with upgrade option to 16) |
| Connections | Encrypted Wi-Fi connection to Apple® iOS tablet, USB port for Wi-Fi module |
| Report Generation | Cloud synchronization Share via URL Cloud-enabled logbook Cloud-based raw data export Cloud-based HTML export Cloud-based report generation |
| Measurement Modes | Line scan Stripe Scan |
| Measuring Range | Up to 2 m / 6.6 ft in depending on concrete quality |
| Battery | Battery pack, 6x AA (NiMH), flight-safe |

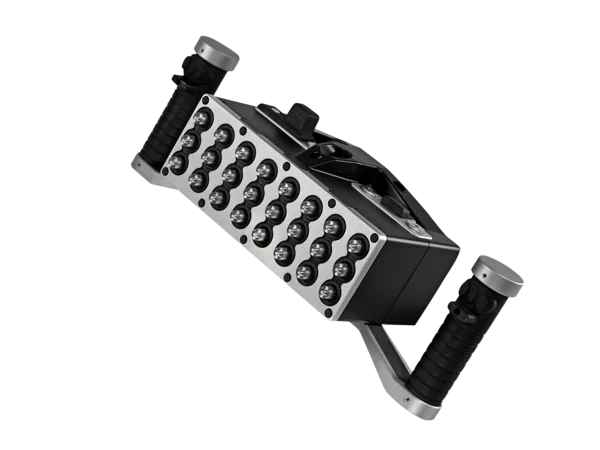

| Transducers | Dry-contact images/products/Pundit_Pulse_Echo/pundit Array transducer with auxiliary LCD display and control buttons on handles |
