The EQUINOX Series has been designed for the serious treasure enthusiast looking to upgrade to a high performance detector, without the high cost. The EQUINOX Series features Minelab’sSTATE-OF-THE ART Multi-IQ simultaneous multi-frequency technology and combines fast recovery speed with low-latency wireless audio in a lightweight waterproof platform.
- Waterproof up to 3meters/10 feet
- Multi Frequency
- Sleek and lightweight
- Wireless audio compatible with Bluetooth
- Detect mode with 8 customs profiles
- Fast and accurate target ID
- The clear LCD features large Target ID numbers u can see your target ID at a glance.
- Detect Modes and operating frequency can be instantly changed at the push of a button for a dynamic and uninterrupted detecting.
- Change the Detect Mode, Frequency and Sensitivity on the go.
- Discrimination patterns to ignore unwanted targets.
- All-Metal mode to temporarily disable the current discrimination pattern.
- Pinpoint mode to know exactly where to dig.
- Distinction between ferrous and non ferrous metals
Equally adaptable for all target types and ground conditions.
True intelligent Simultaneous Multi-Frequency for maximum performance, plus a wide range of single frequencies.
DETECT MODESEqually adaptable for all target types and ground conditions:
Fast recovery speed with accurate Target ID ensures you won’t miss any valuable targets amongst the trash.
8 CUSTOM SEARCH PROFILES
Each Detect Mode features 2 custom Search Profiles so you can save your favourite settings in each mode.
Experience ultra-fast wireless audio with the WM 08, or use fast aptX™ Low Latency / Bluetooth headphones.
SLEEK & LIGHTWEIGHT
Rugged and lightweight construction allows you to enjoy long detecting sessions in any environment.

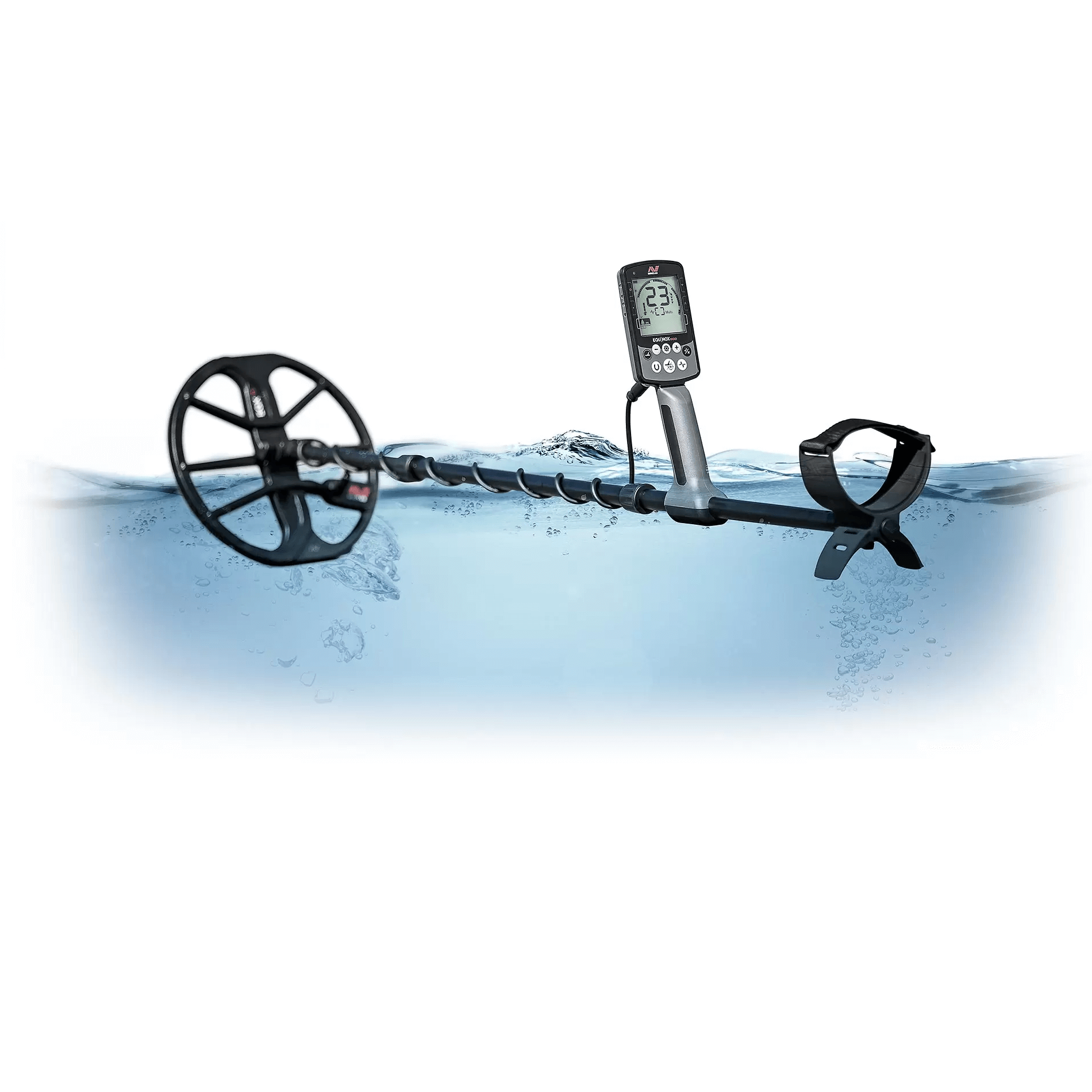

EQUINOX is fully submersible, ideal for detecting at the beach and in rivers, streams and lakes. (3m / 10-feet).
The clear LCD features large Target ID numbers so you can see your target ID at a glance. All of the information you need when detecting is right there in front of you. Detect Modes and operating frequency can be instantly changed at the push of a button for a dynamic and uninterrupted detecting experience.
TGain even more control of your detector audio with Advanced Settings; you decide how much target information you hear.

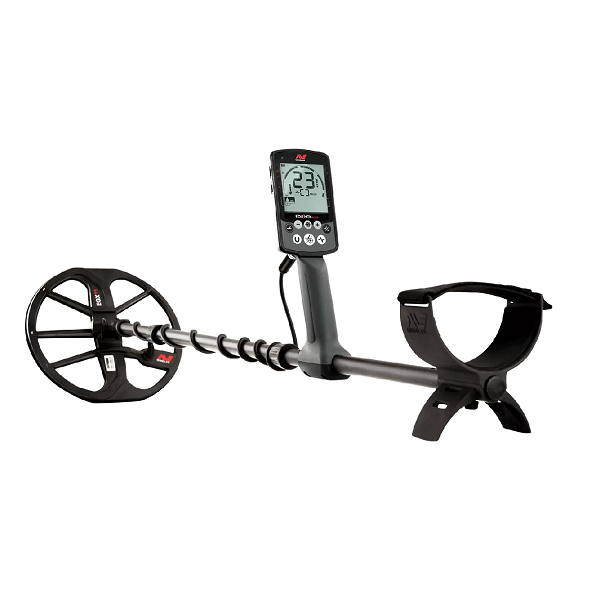

The EQUINOX 600 & 800 offers a variety of coils for specialized detecting. The EQX 06 Smart Coil, EQX 11 Smart Coil, and EQX 15 Smart Coil by Minelab are available from Minelab Dealers worldwide. Third party accessory coils for the EQUINOX Series are available from Coiltek.
Multi-IQ Simultaneous Multi-Frequency
Low frequencies typically give more depth on large targets than high frequencies, which are usually more sensitive to small targets. With Multi-IQ you can operate across the full spectrum of frequencies simultaneously for maximum results.

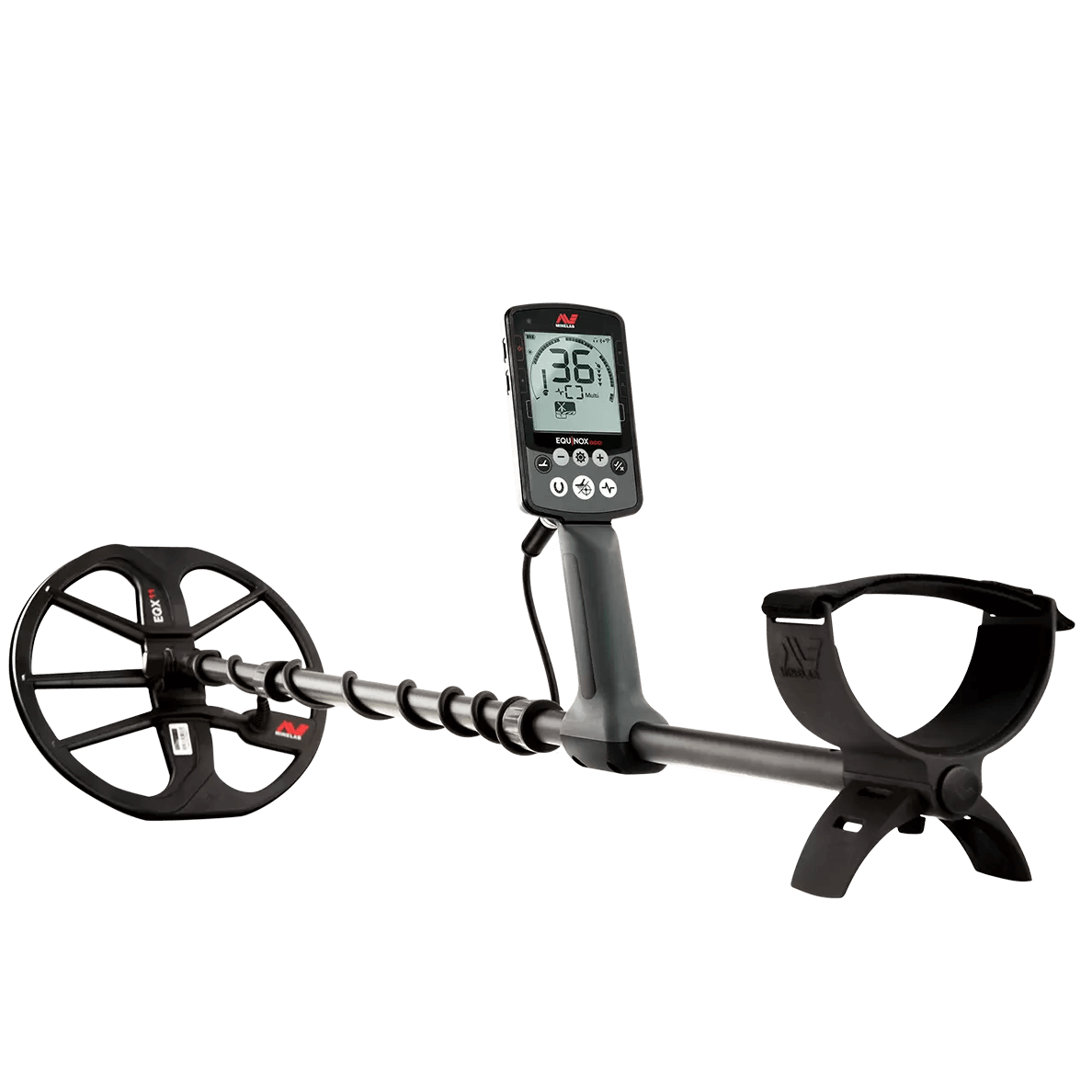

EQUINOX 800 TECH SPECS
- Detect Modes: Park | Beach | Field | Gold
- Custom Search Profiles: 8 (2 per Detect Mode)
- User Profile Button: Yes
- Operating Frequencies (kHz): Multi, 5, 10, 15, 20, 40
- Noise Cancel: Auto | Manual (-9 to 9)
- Ground Balance: Auto | Manual
- Sensitivity: 1–25
- Target Volume:0–25
- Threshold Level: 0–25
- Threshold Pitch: 0–25
- Target Identification: 50 segment notch discrimination | Ferrous: -9 – 0 | Non-ferrous: 1 – 40
- Target Tones: 1, 2, 5, 50
- Tone Break: Ferrous | Non-ferrous
- Tone Pitch: Ferrous | Non-ferrous
- Tone Volume: Ferrous | Non-ferrous
- Depth Indicator: 5 levels
- Length: 1440 mm (56.7")
- Weight: 1.34 kg (2.96 lbs)
- Standard Coil: 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10')
- Audio Output: • In-built loudspeaker • 3.5mm (1/8") headphones (included) • Bluetooth compatible • WM 08 Wi-Stream compatible
- Headphones (included): Bluetooth and aptX™ Low Latency headphones (non waterproof)
- WM 08 (included): Yes
- Display: Monochrome LCD with backlight
- LCD Backlight: Low | Medium | High | Off
- Battery: In-built rechargeable Lithium-ion battery
- Battery Runtime: Approx. 12 hours
- Waterproof: Waterproof to 3m/10-feet
- Key Technologies: Multi-IQ | 5F×8 | Wi-Stream | Bluetooth | aptX™ Low Latency
- Other Accessories: USB Charging cable (1.5A), Multi Language Screen protectors
- Software Upgradeable: Yes, via USB connection (Windows and OSX)
- Warranty: 3 years control box and coil
