PROCEQ-GP-8000
- Availability: In Stock
- INR 1580000.00 (Inclusive of custom duty)
-
Proceq Ground Penetrating Radars
GP8000
Faster, easier concrete inspections and structural imaging with SFCW ground penetrating radar technology
- Unparalleled penetration depth and resolution in a single GPR probe

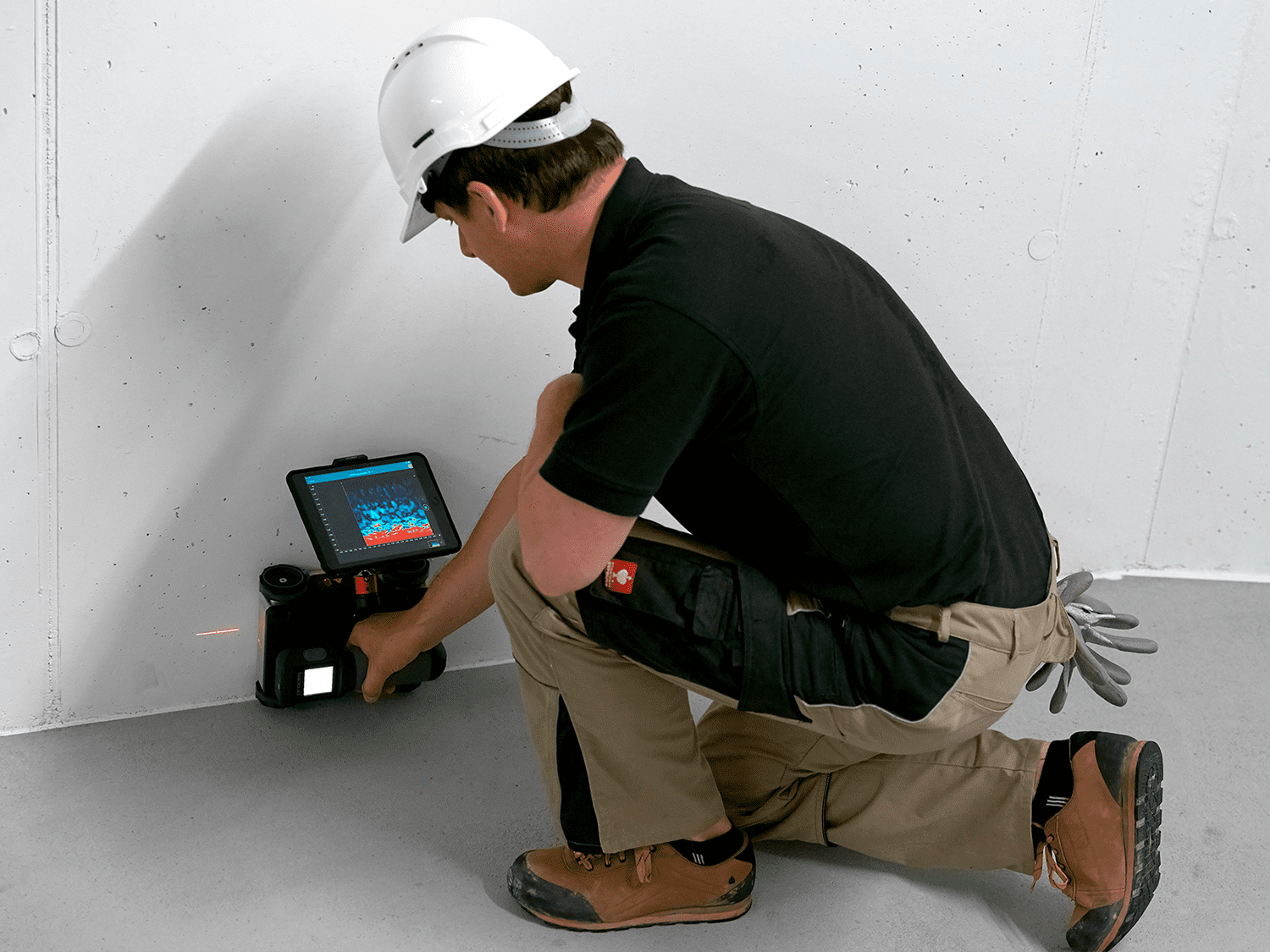

- Powerful, user-friendly user interface for faster, easier concrete assessment
- Great handling and ergonomics in all applications
Applications:

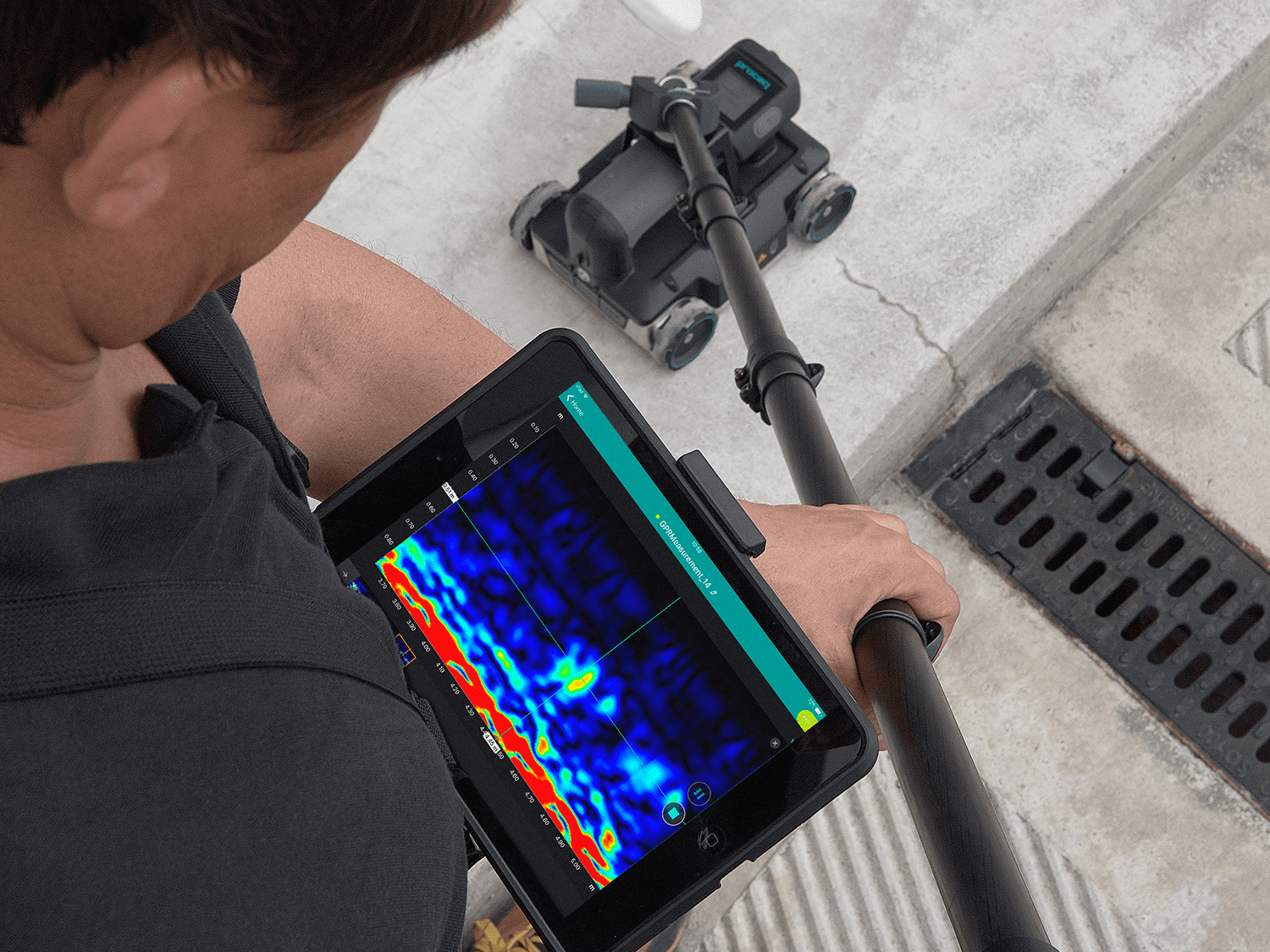

Investigation of pavement and bridge decks / Locating of rebars and live wires before drilling, cutting and coring / Shallow utility locating
Delivery Partners:
Proceq Ground Penetrating Radars
GP8000
Faster, easier concrete inspections and structural imaging with SFCW ground penetrating radar technology
- Unparalleled penetration depth and resolution in a single GPR probe
- Powerful, user-friendly user interface for faster, easier concrete assessment
- Great handling and ergonomics in all applications
Applications:
Investigation of pavement and bridge decks / Locating of rebars and live wires before drilling, cutting and coring / Shallow utility locating
Clarity & depth meets wireless multi-usage
Resolution & depth
Superior depth and clarity of data thanks to the unique Swiss Made radar technology with all the frequencies you'll ever need. Immediate insights with 3D and Augmented Reality.
Powerful UI
Inspect with ease of use, from the tightest spots to the tallest walls to the longest streets. Superior ergonomics to tackle any challenge with comfort, without cables.
Great handling
Mobile app that lets you annotate measurements with voice, photos and comments. Generate reports and share them instantly. Access your data from anywhere, anytime.
| Software / Workspace App | |

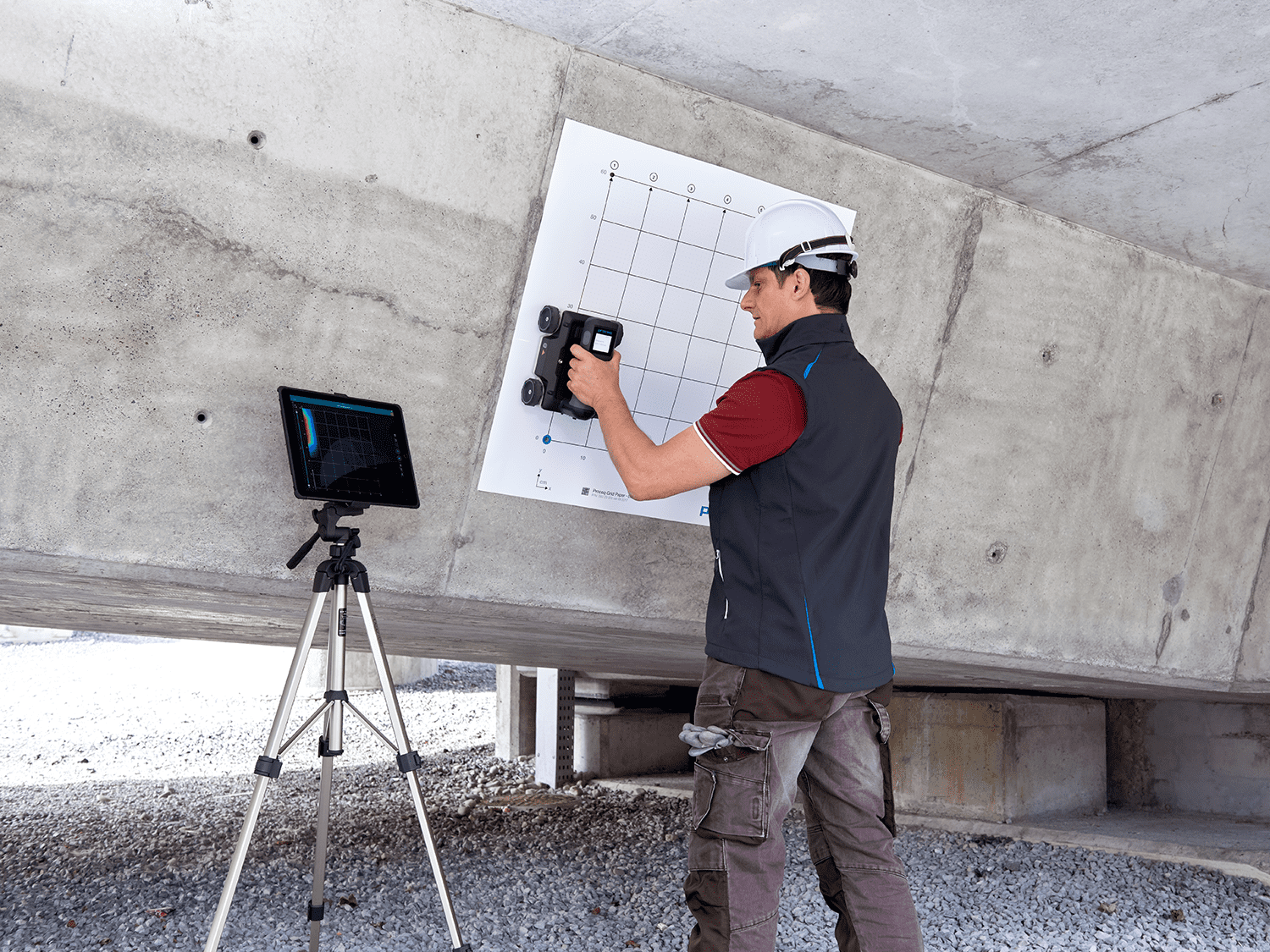

| Measurement modes | Superline Scan (1000m / 3281 ft) Area Scan (with Flexible Grid up to 100m2 / 1076 ft2) |
| Review modes | Superline scan1 A-scan (incl. envelope) Migrated view Non-migrated view Split view1 Time-Slice view2 Basic 3D view AR |
| Advanced visualization | Time-Slice view Pro 3D view Augmented Reality (AR) |
| Reporting | Workspace integration Automatic Logbook SEG-Y export Instant report generation Share via URL |
| Export formats | JPG PNG CSV SEGY HTML |
| Display Unit Specs*: | Latest Apple iPad recommended (iPad with iOS 11.0 and higher) Screen size: From 7.9" to 12.9" Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID |
| Display Unit Sensors*: | LiDAR Scanner (optional) Three-axis gyro Accelerometer Ambient light sensor Barometer Built-in GPS/GNSS |
| Sensor | |
| Radar technology | Stepped-frequency continuous-wave (SFCW) GPR |
| Modulated frequency range | 200-4000 MHz |
| Penetration depth | 80 cm / 31.5 in |
| Battery | Flight-safe, removable pack, 8x AA (NiMH) |
| Dimensions | 22.1 x 18 x 14 cm 8.7 x 7.1 x 5.5 in |
| Weight | 1.5 kg / 3.3 lbs (excl. battery pack) |
| Ground clearance | 0.8 cm / 0.32 in |
| Antennas | 1 |
| Antenna distance to edge | 8.3 cm / 3.27 in |

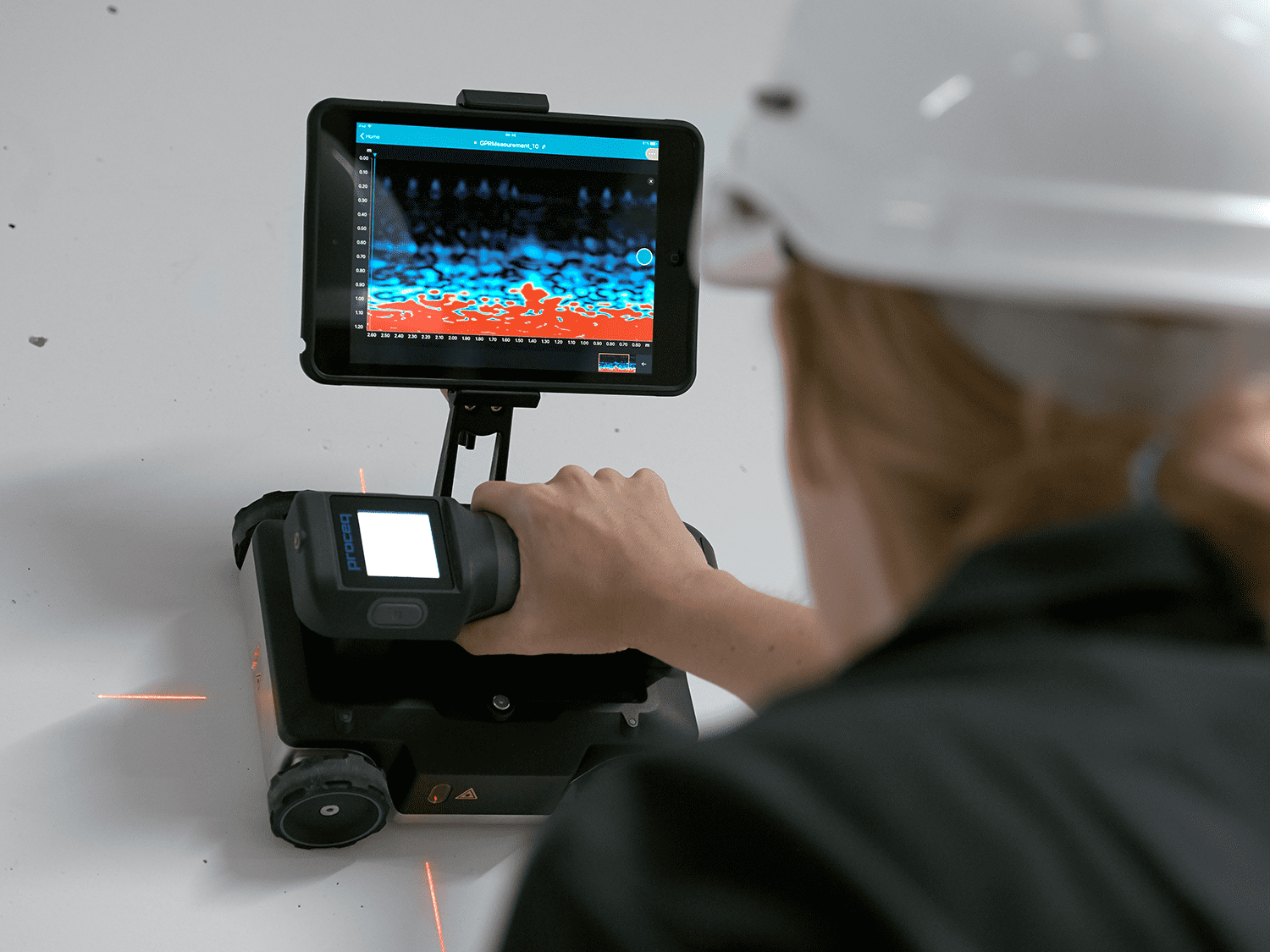

| Special features | All-wheel drive with high-traction wheels Laser light guidance |
| IP rating | IP54 |
| Connections | Wi-Fi (802.11n) to display unit |
| Autonomy | 3 h |
