PROCEQ-GP-8100
- Availability: In Stock
- INR 1280000.00 (Inclusive of custom duty)
-

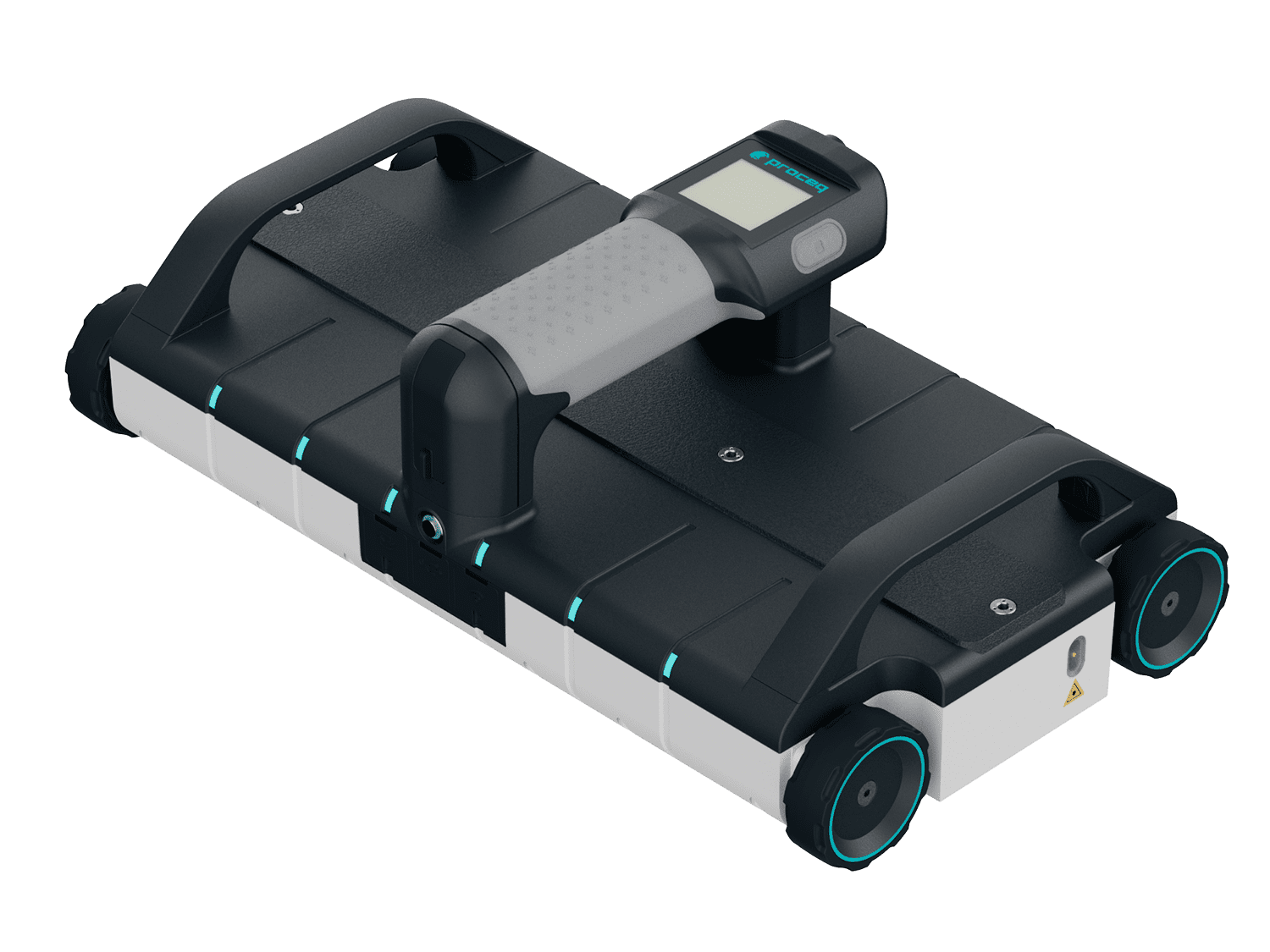

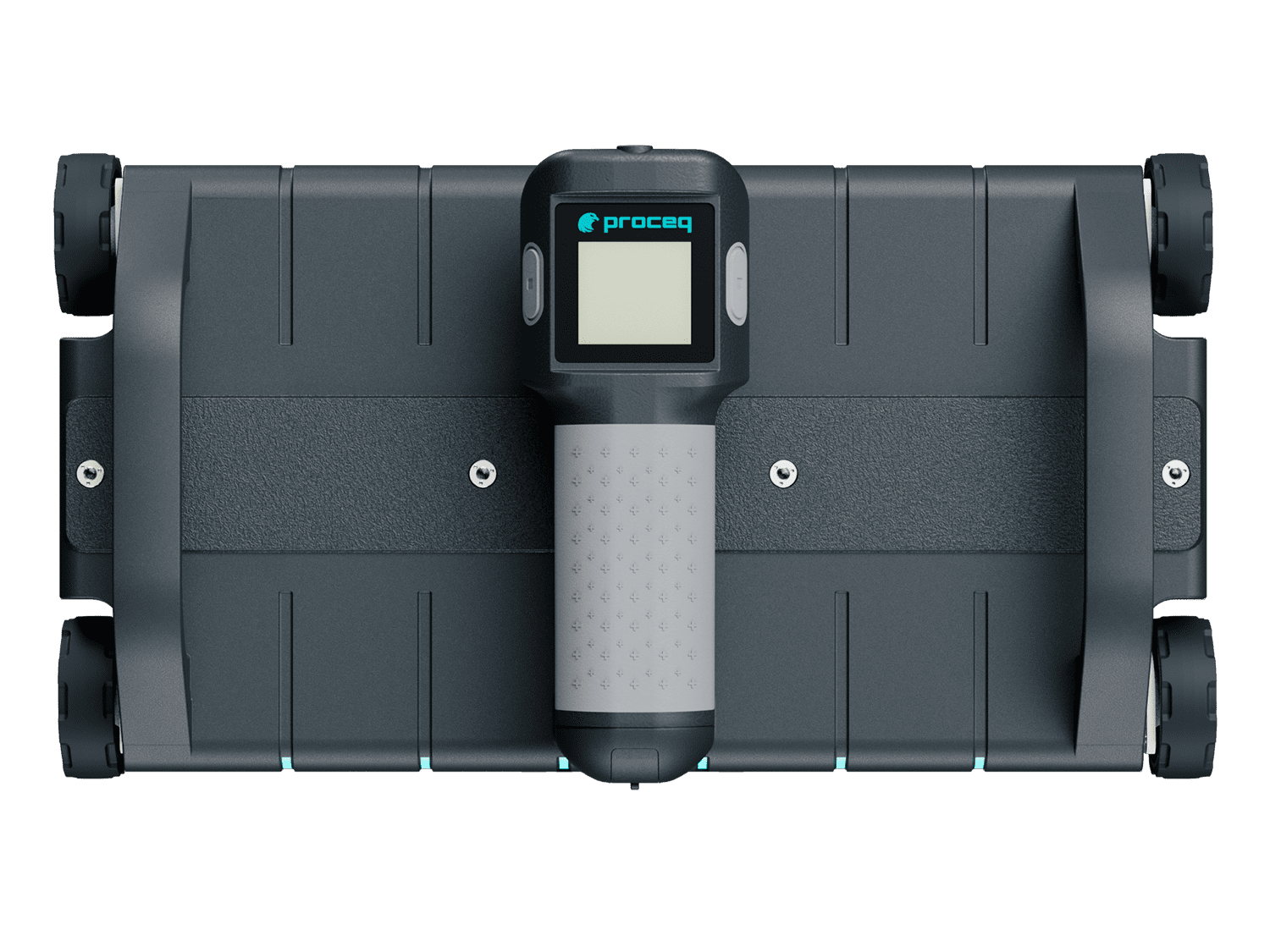

Proceq Ground Penetrating Radars
GP8100
Highly productive portable concrete GPR array, enabling quick object detection and superior data collection
- Large scan width, high scan rate, and best-in-class penetration depth
Delivery Partners:
Proceq Ground Penetrating Radars
GP8100
Highly productive portable concrete GPR array, enabling quick object detection and superior data collection
- Large scan width, high scan rate, and best-in-class penetration depth.
- Fast detection of objects of any size with the superline scan view
- Dense, accurate GPR data collection in one superline scan
Applications:
Concrete inspection of large areas in all buildings or bridge decks / Object detection and damage prevention before drilling, coring or cutting into concrete / GPR data collection for concrete structural assessment and post-processing data
Revolutionary portable concrete GPR array with never-seen-before data clarity
Productivity
Boost scanning efficiency with 25cm effective scan width and 80cm penetration depth, one scan is equivalent to 6 classical line scans
Visualization
Detecting objects of all sizes and marking on concrete surfaces has never been so easy and fast with the superline scan view
Density
The high scan rate of 1'200 scans/s enables a very dense GPR data collection in only one superline scan, which can be visualized in 6 classical line scans
| Software / Workspace App | |
| Measurement modes | Superline Scan (1000m / 3281 ft) Area Scan (with Flexible Grid up to 100m2 / 1076 ft2) |
| Review modes | Superline scan A-scan (incl. envelope) Migrated view Non-migrated view Split view Time-Slice view Basic 3D view AR |
| Advanced visualization | Time-Slice view Pro 3D view Augmented Reality (AR) |
| Reporting | Workspace integration Automatic Logbook SEG-Y export Instant report generation Share via URL |
| Export formats | JPG PNG CSV SEGY HTML |
| Display Unit Specs*: | Latest Apple iPad recommended(iPad with iOS 11.0 and higher) Screen size: From 7.9" to 12.9" Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID |
| Display Unit Sensors*: | LiDAR Scanner (optional) Three-axis gyro Accelerometer Ambient light sensor Barometer Built-in GPS/GNSS |
| Sensor | |
| Radar technology | Stepped-frequency continuous-wave (SFCW) GPR |
| Modulated frequency range | 400-4000 MHz |
| Penetration depth | 80 cm / 31.5 in |
| Battery | Flight-safe, removable pack, 8x AA (NiMH) |
| Dimensions | 41.5 x 22.5 x 13.2 cm> 16.3 x 8.9 x 5.2 in |
| Weight | 3.0 kg / 6.6 lbs (excl. battery pack) |
| Ground clearance | 0.8 cm / 0.32 in |
| Antennas | 6 |
| Antenna distance to edge | 8.3 cm / 3.27 in |
| Special features | All-wheel drive with high-traction wheels and laser light guidanceUSB-C tethering to power bank |
| IP rating | IP54 |
| Connections | Wi-Fi (802.11n) to display unit USB-C for Wi-Fi restricted areas |
| Autonomy | 3h (Up to 8 hours with off-the-shelf 10'000 mAh power bank, not included) |
