The new generation GR-4 is an advanced ground scanning and detection system that allows you to detect underground anomalies, perform 3D analysis, and evaluate the results instantly.

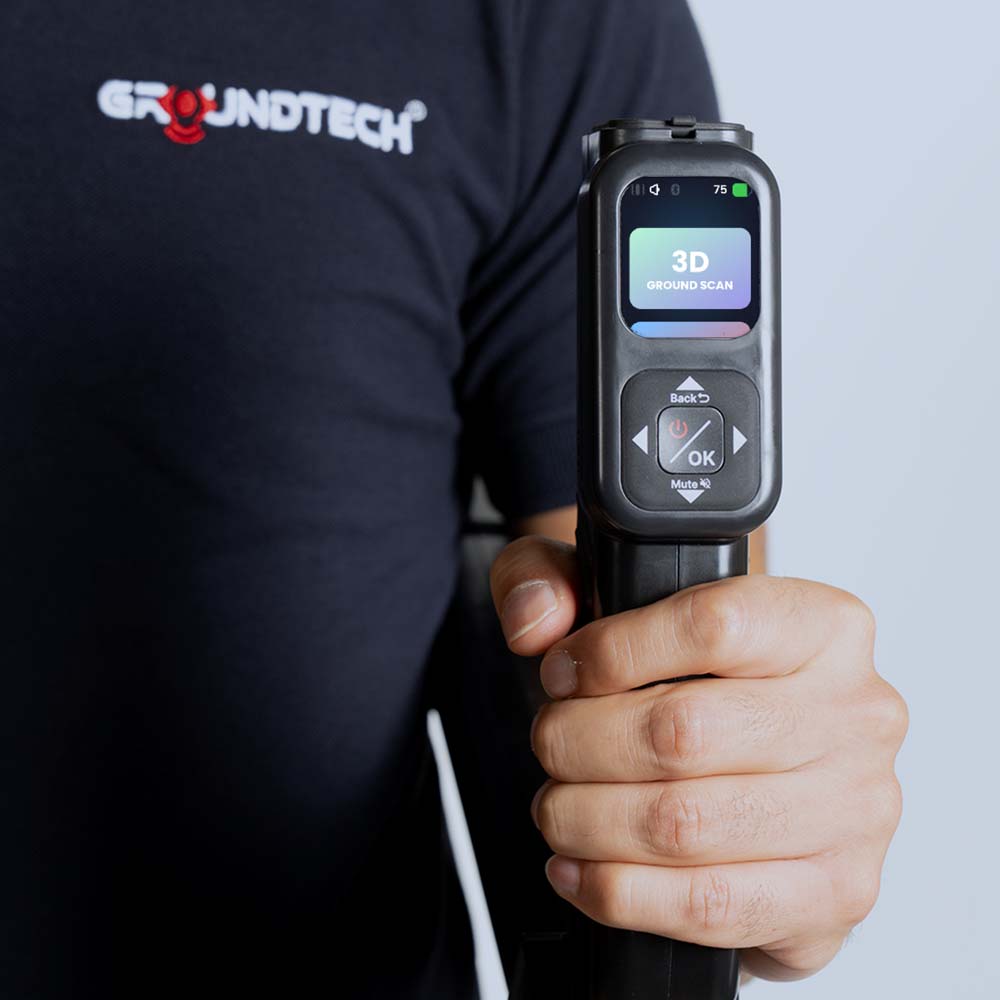

6 Different Scanning Features
For an engaging exploration experience
3D Ground Scan, Quick Scan, Pinpointer, Live Scanning, Advanced Scan Mode, and 3D Detector Mode.
Simplified Design, Powerful Performance
Compact and accessible
Detect metals, graves, rooms, tunnels, and cavities with advanced 3D visualization.
Next-Generation Ground Scanning
Advanced detector with 3D analysis
Multi-functional solutions for professionals and archaeological exploration.
Multi-Language Support
Easy to use worldwide
Supports multiple languages with 25-language mobile app compatibility.
MFS-2 Dual Sensor Technology
High sensitivity & precision
Faster processor and advanced dual-sensor technology for accurate and deep scanning.

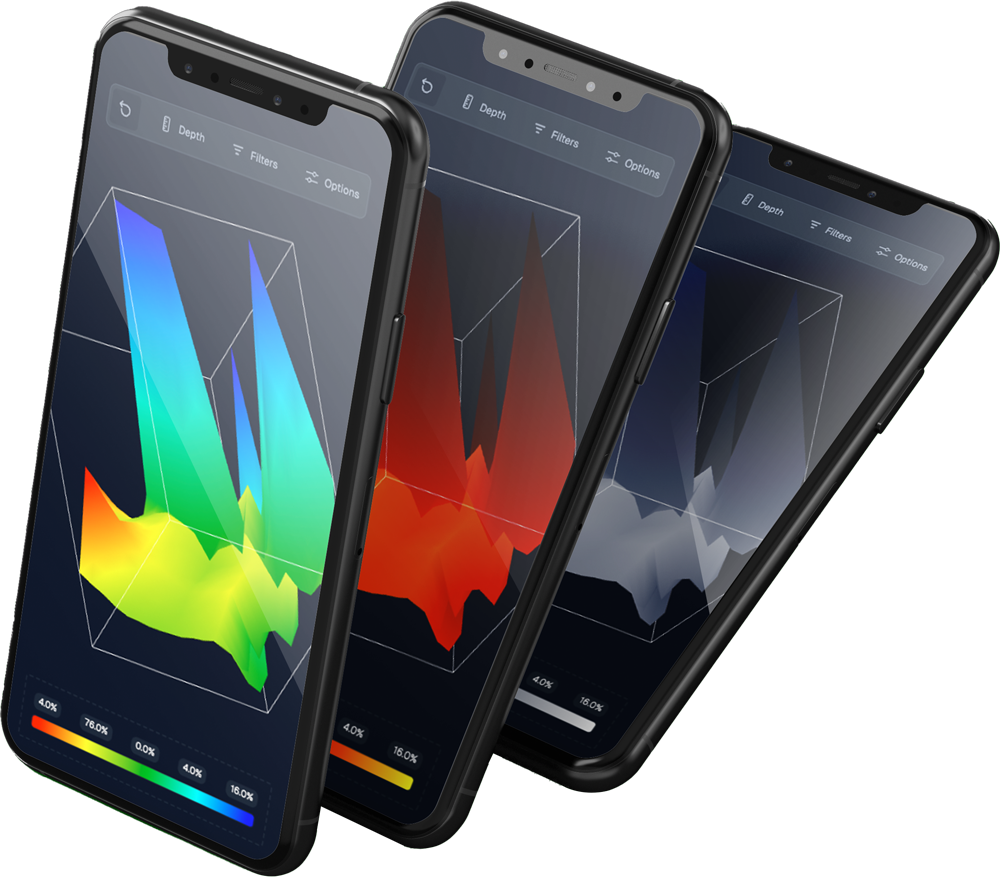

3D Graphics
Get the results quickly with the understandable graphics.
While scanning with the GR-4 Model, settings and results are displayed to the user on the integrated screen of the device. It also provides real-time detailed and 3D analysis through the G-Portal (Groundtech Portal) application, specifically developed for Android and iOS devices.
GR-4 - Package Content
Main Unit, Carrying bag, User manual, Charging adapter, MFS-2 Dual Sensor
The GR-4 Dual model in the series is equipped with an integrated Pulse Induction (PI) detector system in addition to its 3D ground scanning capabilities.
This technology delivers superior performance, particularly in areas where standard detectors struggle, such as soils with high mineral content, saline soils, and coastal regions. The PI system can detect targets deep underground without being affected by mineral density or soil composition. This allows large metal masses, buried precious metals, or deep cavities to be detected with much clearer and more stable signals.
The GR-4 Dual allows for easy conversion by simply mounting the PI search coil onto the section where the magnetic sensor is attached, thanks to its modular design. This enables both 3D ground scanning and professional PI detector searches with a single device. This feature offers users two powerful technologies simultaneously, without the need to carry two separate devices. As a result, the GR- 4 Dual offers a complete, standalone solution for multi - purpose field work, deep searches, and challenging terrain conditions.
Quick and Easy Underground Scanning
The Pinpointer Function helps you find the pinpoint location of objects. Thanks to its specially developed software and hardware sensors, it can detect from significant depths.
Quick and Easy Underground Scanning
The Pinpointer Function helps you find the pinpoint location of objects. Thanks to its specially developed software and hardware sensors, it can detect from significant depths.
Quick and Easy Underground Scanning
The Pinpointer Function helps you find the pinpoint location of objects. Thanks to its specially developed software and hardware sensors, it can detect from significant depths.
Quick and Easy Underground Scanning
The Pinpointer Function helps you find the pinpoint location of objects. Thanks to its specially developed software and hardware sensors, it can detect from significant depths.
| Specification | GR-4 | GR-4 DUAL |
|---|---|---|
| System | 3D Ground Scanner | 3D Ground Scanner and Integrated Pulse Induction Metal Detector |
| Sensor Technology | MFS-2 Dual Sensor Technology (Gradiometer) ± 2000 µT | MFS-2 Dual Sensor Technology (Gradiometer) ± 2000 µT |
| Detector Technology | - | Pulse Induction Technology – 1 kHz Frequency |
| CPU | 240 MHz CPU - 12-bit A/D Converter | 240 MHz CPU - 12-bit A/D Converter |
| Depth | Up to 15 meters deep with the 3D scanning system | Up to 15 meters deep with the 3D scanning system, Detector system up to 3 meters deep*** |
| Scanning Modes | 3D Ground Scanning, Live Scanning, Pinpointer | 3D Ground Scanning, Live Scanning, Pinpointer, Detector Fast Scanning, Detector Advanced Scanning |
| 3D Analysis Application | G-Portal Android & iOS 3D/4D Analysis Program | G-Portal Android & iOS 3D/4D Analysis Program |
| Language | Device: 11 Languages, Mobile App: 25 Languages | Device: 11 Languages, Mobile App: 25 Languages |
| Battery | 3.7 V Li-ion Rechargeable Battery | 3.7 V Li-ion Rechargeable Battery |
| Operating Time | The 3D scanning system takes approximately 10 hours. | The Pulse Induction Detector system takes approximately 6 hours, and the 3D scanning system takes approximately 10 hours. |
| Wireless Connection | Bluetooth 4.2 BLE | Bluetooth 4.2 BLE |
| Operating Temperature | 0°C - 70°C | 0°C - 70°C |
| Storage Conditions | -20°C - 60°C | -20°C - 60°C |
| Warranty | 2 Years | 2 Years |
| Charging Input Voltage | Type-C 25W Charger Adapter | Type-C 25W Charger Adapter |
| Weight | ||
| Dimensions |
