Groundtech GR3 Detector

Availability: In Stock

INR 150000.00 (Inclusive of custom duty)
GR-3 product; It is an underground imaging device that detects differences under the soil and allows you to perform 3D analysis

Qty

Delivery Partners:

Product Details

GR-3 product; It is an underground imaging device that detects differences under the soil and allows you to perform 3D analysis. It allows you to detect, measure and locate metals, magnetic objects, cavity structures such as graves, rooms, tunnels, etc. buried under the ground.

Different Scanning Features

Extremely simple and compact product that anyone can use

The GR-3 Plus model includes Auto Ground Scanning, Manual Ground Scanning, Live Scan, and Pinpointer as standard scanning features. These advanced features ensure thorough and precise detection of underground anomalies.

Superior Detection Capabilities

Reach depths up to 7 meters with GR-3

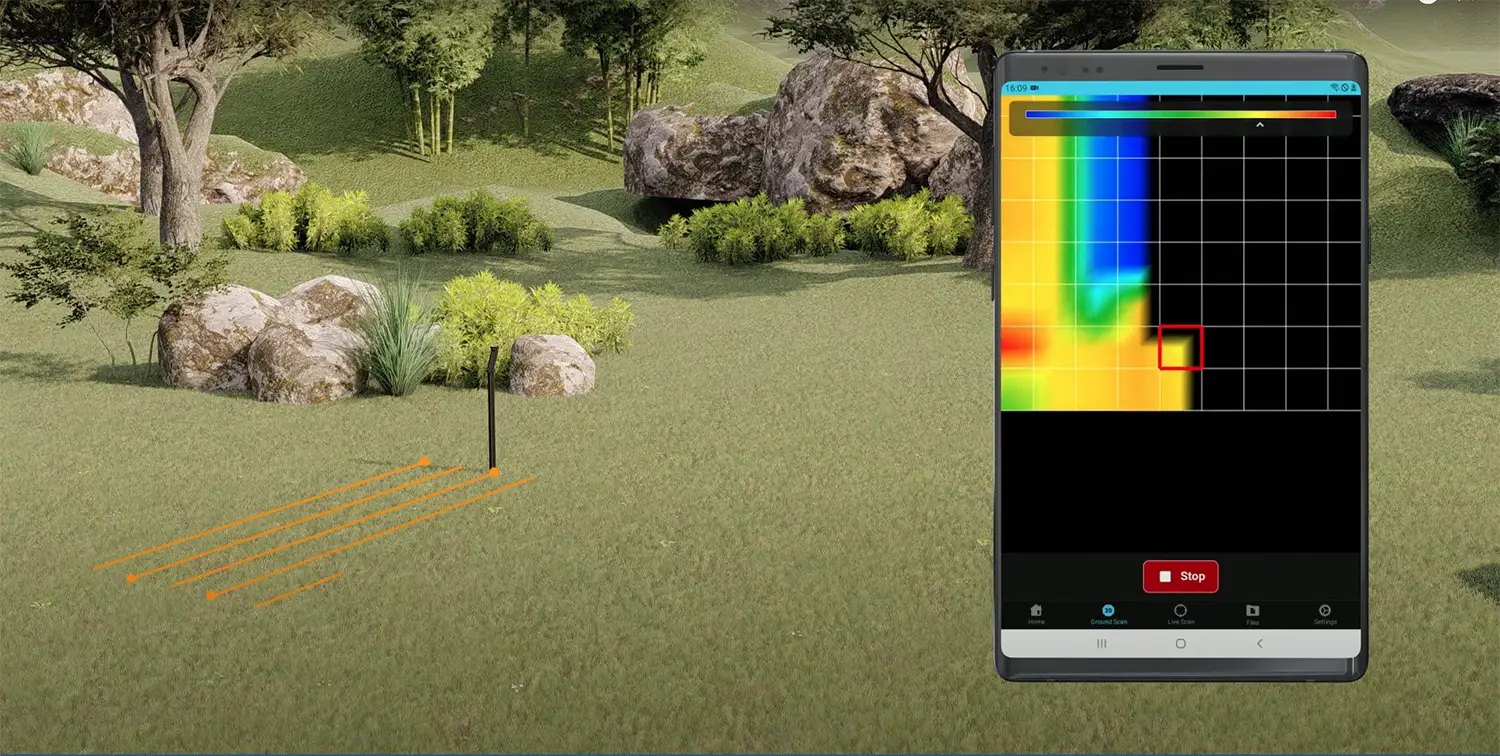

Depending on the size (diameter) of the target and the soil structure, depths of up to 7 meters can be reached with the GR-3. The device is designed to be extremely simple and compact, making it accessible to everyone. With its lightweight design, the user scans the ground, and the data obtained during the scan appears in real-time on the screen of mobile devices such as tablets or mobile phones.

Uncover the Hidden Treasures

Advanced Ground Scanning Detector with 3D Analysis

The GR-3 is a ground scanning detector that detects differences under the ground and allows you to perform 3D analysis. It enables the detection, measurement, and location of buried metals, magnetic objects, and cavities such as tombs, rooms, and tunnels. It graphically displays magnetic (iron or steel) and non-magnetic (gold, silver, or copper) metals through its specially developed 3D analysis software.

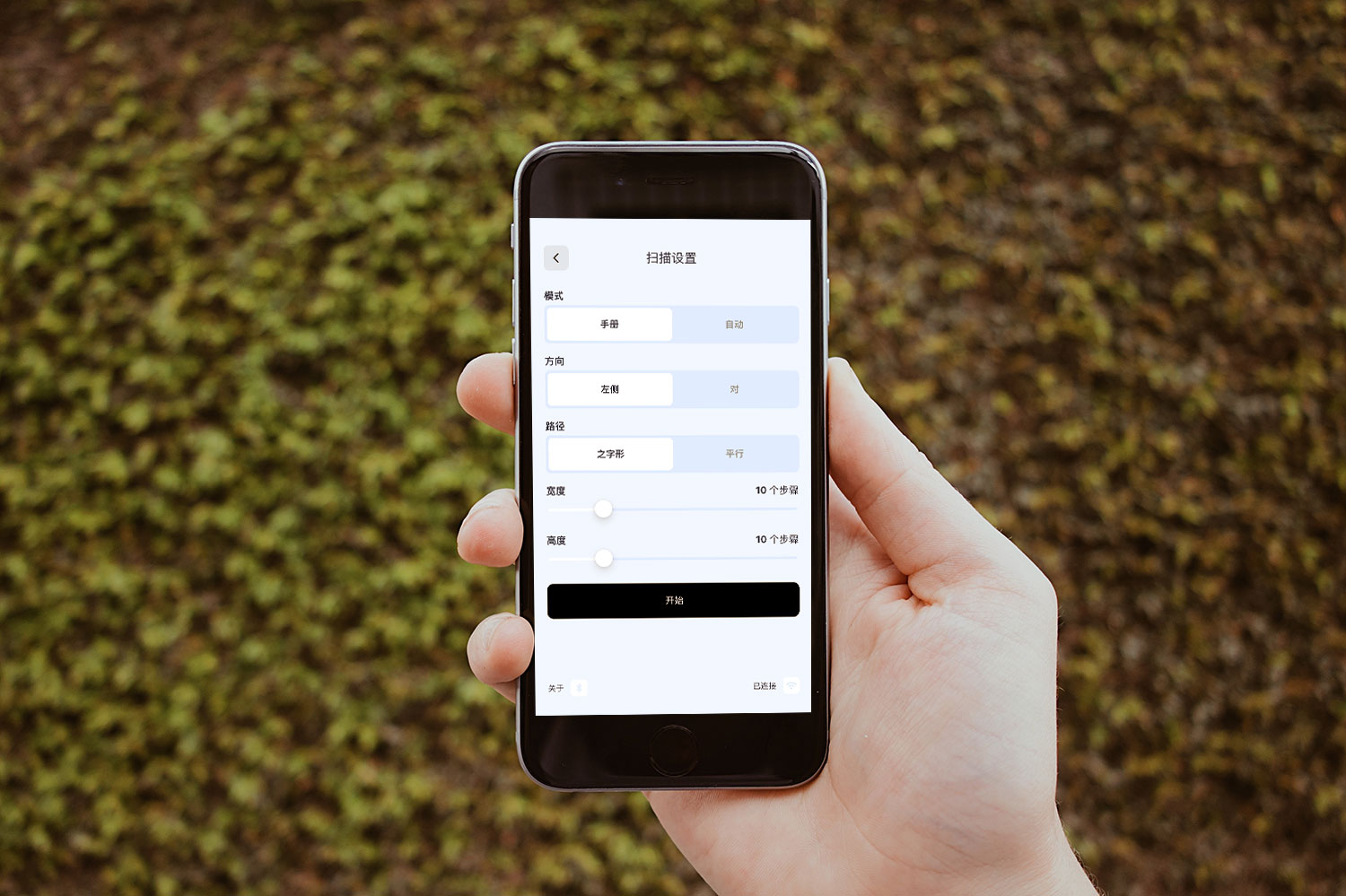

Multi-Language Support

Easy to use worldwide

Supports multiple languages with 25-language mobile app compatibility.

MFS-2 Dual Sensor Technology

High sensitivity & precision

Faster processor and advanced dual-sensor technology for accurate and deep scanning.

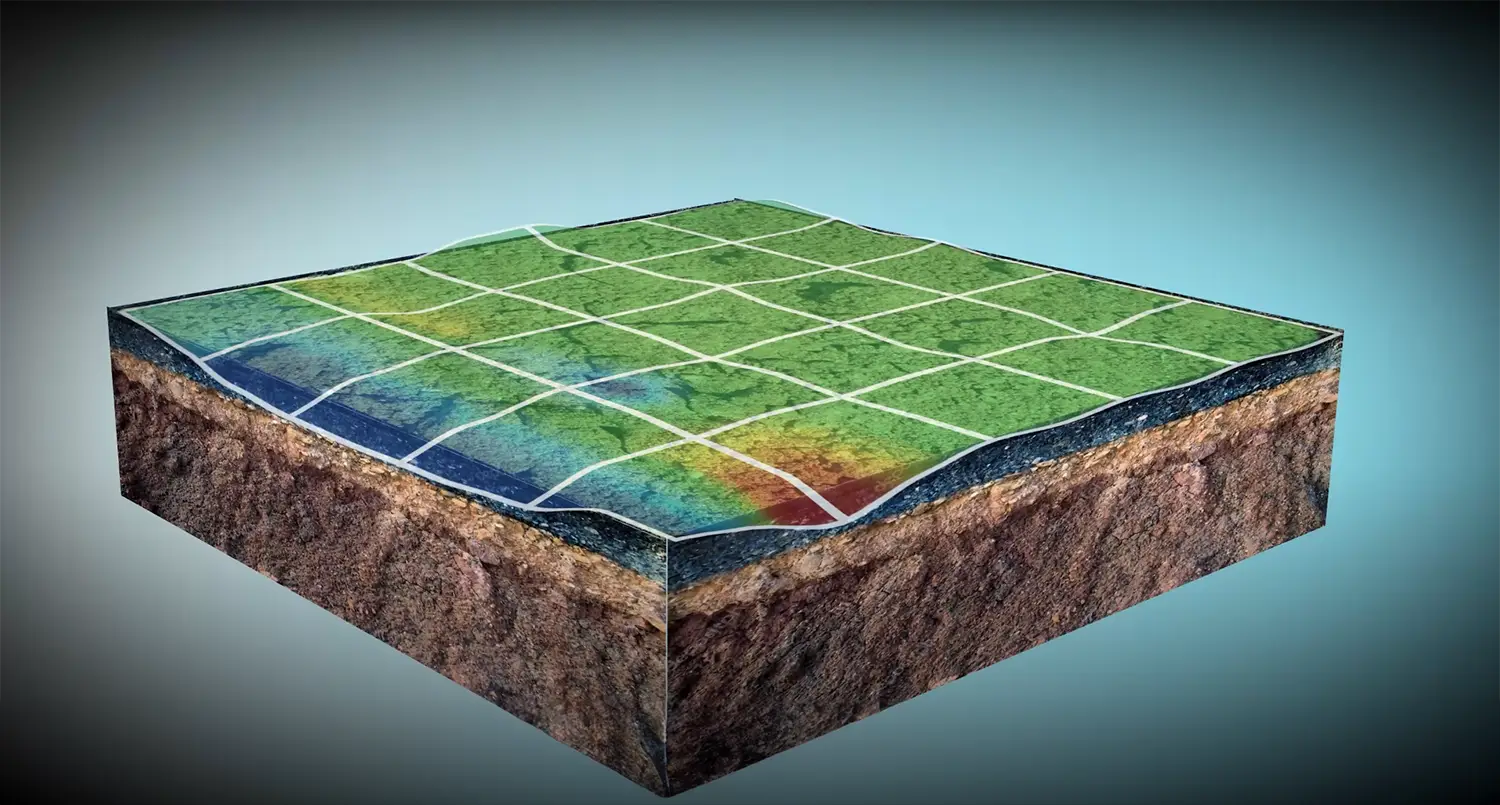

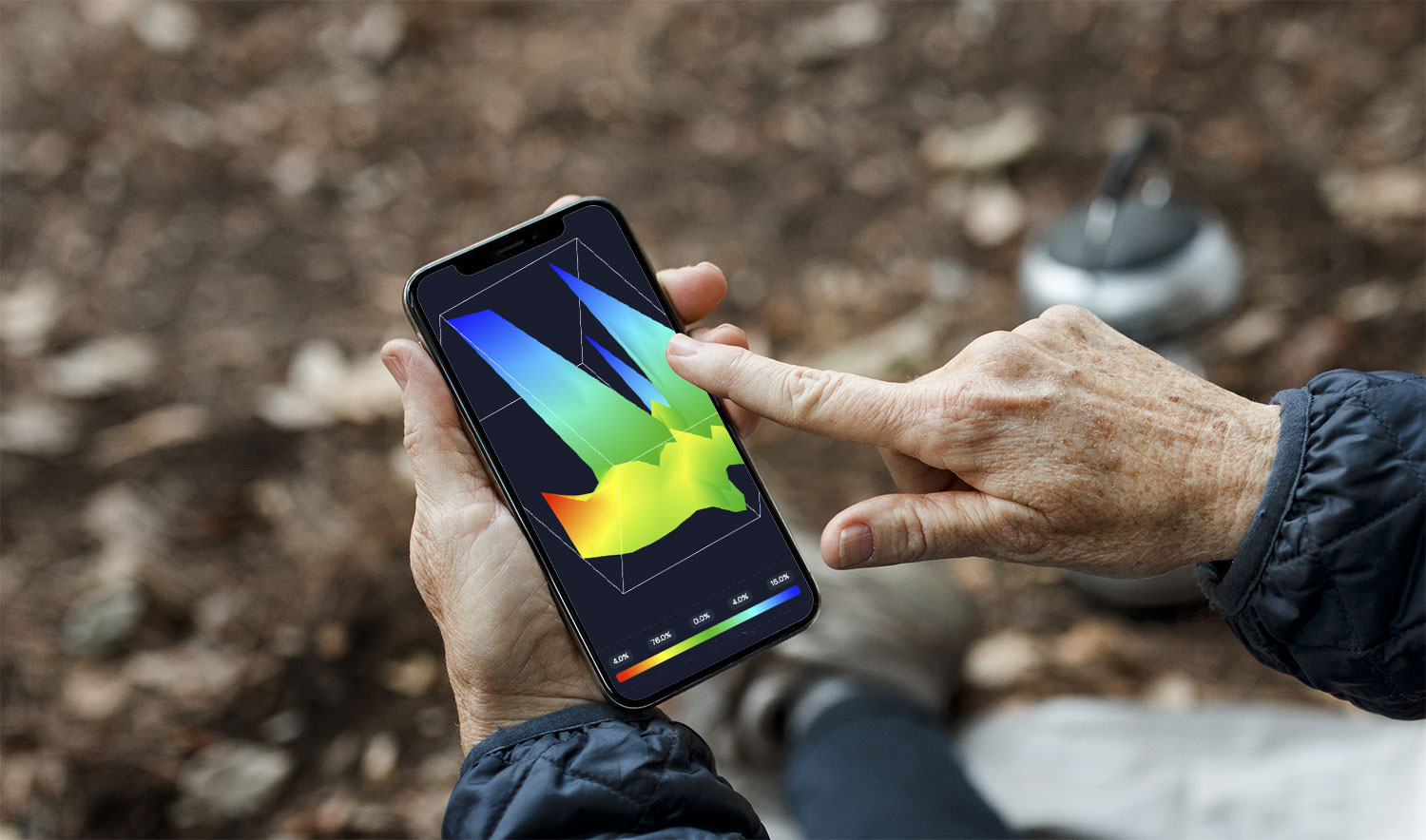

3D Graphics

Get the results quickly with the understandable graphics.

While scanning with the GR-4 Model, settings and results are displayed to the user on the integrated screen of the device. It also provides real-time detailed and 3D analysis through the G-Portal (Groundtech Portal) application, specifically developed for Android and iOS devices.

GR-4 Ground Scanning and Detection System

GR-3 – Package Content

Device main unit, 5 volt charging adapter and charging cable, Carrying case, User manual, Warranty certificate

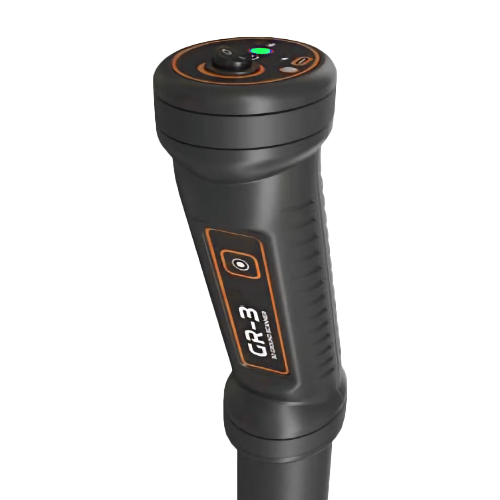

The GR-3 is designed to be extremely simple and compact, making it accessible to everyone.

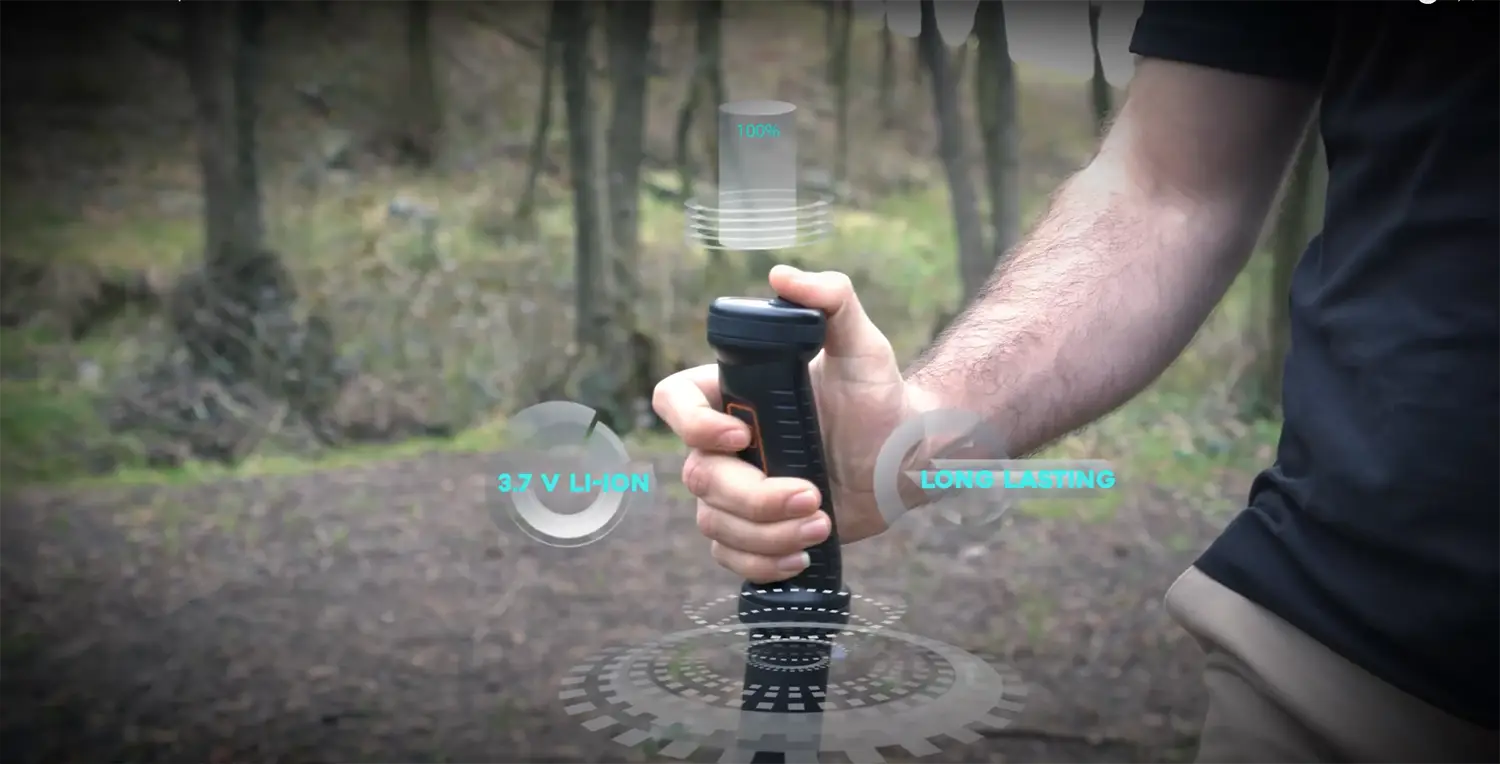

It does not have any cables or heavy batteries. Thanks to its lightweight design, the user scans the ground and the data received during the scan is displayed on the screen of a mobile device such as a tablet or phone in real-time.

The results on the screen can be analyzed immediately after the scanning and measuring process is finished. The data received can be stored on your mobile device such as a tablet or phone and can be re-evaluated in detail when needed.

The depth and diameter (size) of the target (metal and/or cavity) can be quickly determined thanks to the software's options.

The GR-3 is a multi-purpose device that can be used in all types of terrain (sandy, rocky or clayey).

GR-3 is available in two different models;

GR-3 model has a

high precision single sensor system

The GR-3 Plus model has a

Wireless data transfer
3D Analysis app specially developed for Android and IOS
Automatic and Manual, 3D ground scanning function

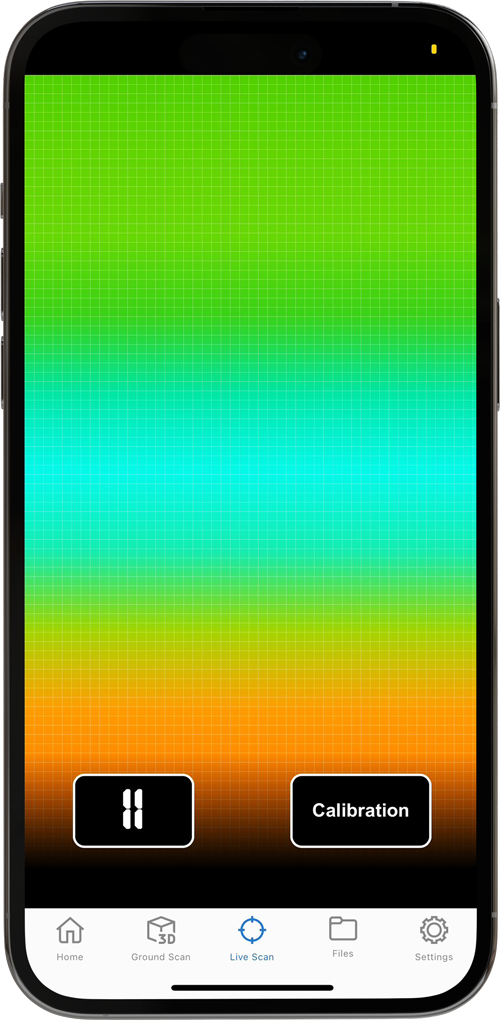

Live scan and Pinpointer function
5 volt micro usb charging (can be charged with portable power supplies)

a2-geo Ground Scanning and Detection System

Quick and Easy Underground Scanning

it allows you to find out point location of the objects. Through its special sensors developed in software and hardware, it provides very deep detection.

Quick and Easy Underground Scanning

You can quickly detect the object under the ground graphically. You can easily and quickly detect without being tied to a specific type of search method.

Quick and Easy Underground Scanning

You can perceive the location and depth of objects, chambers, tunnels and tombs underground in 3D and measure them graphically and numerically.

Specification	A2	A2 GEO
System	3D Ground Scanner and Integrated Pulse Induction Metal Detector	3D Ground Scanner, Integrated Pulse Induction Metal Detector, Integrated Geo-Electric System
Sensor Technology	MFS-3 Dual Sensor Technology (Gradiometer) ± 3000 µT	MFS-3 Dual Sensor Technology (Gradiometer) ± 3000 µT
Detector Technology	Pulse Induction Technology – 1 kHz Frequency	Pulse Induction Technology – 1 kHz Frequency
Resistivity System	-	100V – 66mA Output, 62 Hz, 50 Sample Interval
CPU	240 MHz CPU - 12-bit A/D Converter	240 MHz CPU - 12-bit A/D Converter
Depth	3D Scanning System up to 20 meters deep***	3D Scanning System up to 20 meters deep***
Scanning Modes	3D Ground Scanning, Live Scanning, Pinpointer, Detector Quick Scan, Detector Advanced Scan, 3D Detector Scanning	3D Ground Scanning, Live Scanning, Pinpointer, Detector Quick Scan, Detector Advanced Scan, 3D Detector Scanning, Resistivity Automatic Scanning, Resistivity Manual Scanning
3D Analysis Application	G-Portal Android & iOS 3D Analysis Program	G-Portal Android & iOS 3D Analysis Program
Language	Device: 11 Languages, Mobile App: 25 Languages	Device: 11 Languages, Mobile App: 25 Languages
Battery	3.7 V Li-ion Rechargeable Battery	3.7 V Li-ion Rechargeable Battery
Operating Time	Pulse Induction Detector system approx. 6 hours, other systems approx. 10 hours	Pulse Induction Detector system approx. 6 hours, other systems approx. 10 hours
Wireless Connection	Bluetooth 4.2 BLE	Bluetooth 4.2 BLE
Operating Temperature	0°C - 70°C	0°C - 70°C
Storage Conditions	-20°C - 60°C	-20°C - 60°C
Warranty	2 Years	2 Years
Charging Input Voltage	Type-C 25W Charger Adapter	Type-C 25W Charger Adapter
Weight
Dimensions
